Implementation of Adversarial Sparse Transformer for Time Series Forecasting

https://proceedings.neurips.cc/paper/2020/file/c6b8c8d762da15fa8dbbdfb6baf9e260-Paper.pdf

Notes:

• Performance is just about 0.10 on gloss 50 metric on elect 1d dataset.
• I arranged layer normalization after each layer calculation and dropouts are just before layer. Otherwise, it does not work for me. It seems, layer should see/have those dropout zeros without them being leveled by layer normalization.
• I’m getting similar performance with 2 or 3 layers, 4 heads and 128 width. It is likely that changing width and number of heads, could improve prformance. it is just taking in a range of 1000 epochs for me.
• I noticed that qloss training results in high error for some items. I think rmse error would pay more attention to outliers
• With adversarial Training I go 0.10 on q50 compare to 0.11 without it. It is just small difference
• Prediction is done. Obviously, dataset should be continuation of the same time series! Probably, dataset should have TRAIN, VALIDATION, maybe TEST/PREDICT sets.
• I do not mask in decoder since there is no labels , it is non-auto-regressive
• Discriminaror performance is like 0.75. It should be closer to .50 I guess!

To do/try:

• Sparse function is not implemented. Sparsemax function is available with Tensorfow 2 – tensorflow_addons. It may improve performance to make these zero weights
• I want to see performance with more hidden layer width and more heads

Commands:

Prepare datasets:

download LD2011_2014.txt. I use data subfolder in the sample commands

python prepare_data.py –lookback_history=168 –estimate_length=24

Train:

python training.py –action=TRAIN –output_dir=checkpoints-27 –lookback_history=168 –estimate_length=24 –train_epochs=1500 –learning_rate=1e-4 –minimal_rate=1e-5 –decay_steps=50000 –warmup_steps=50000 –clip_gradients=-1.0 –hidden_size=128 –feedforward_size=128 –embedding_size=20 –discriminator_lambda=0.1 –num_attention_heads=4 –num_hidden_layers=2 –dropout_prob=0.3 –num_series=370 –training_set_size=321598 –train_file=data/train.tfrecords –test_file=data/test.tfrecords –predict_file=data/test.tfrecords –train_scaler_file=data/train_scaler.joblib –test_scaler_file=data/test_scaler.joblib –predict_scaler_file=data/test_scaler.joblib –batch_size=64

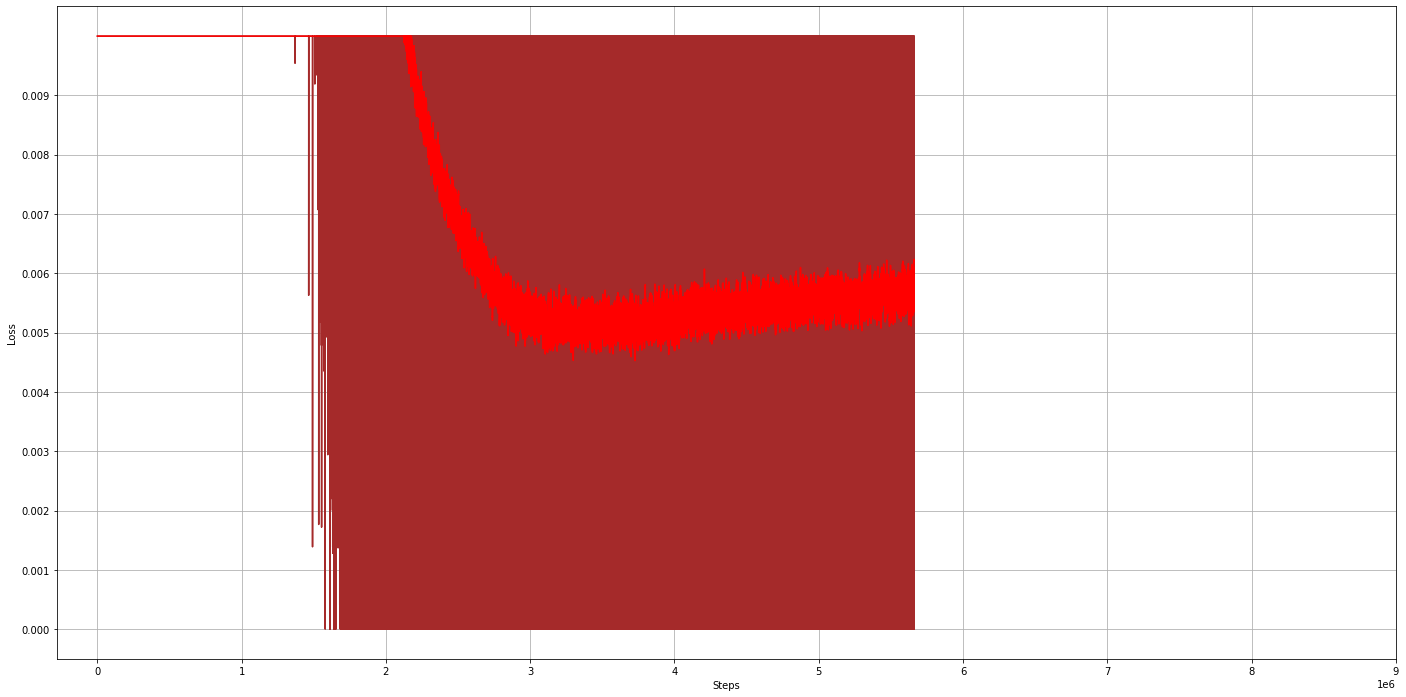

Generator loss

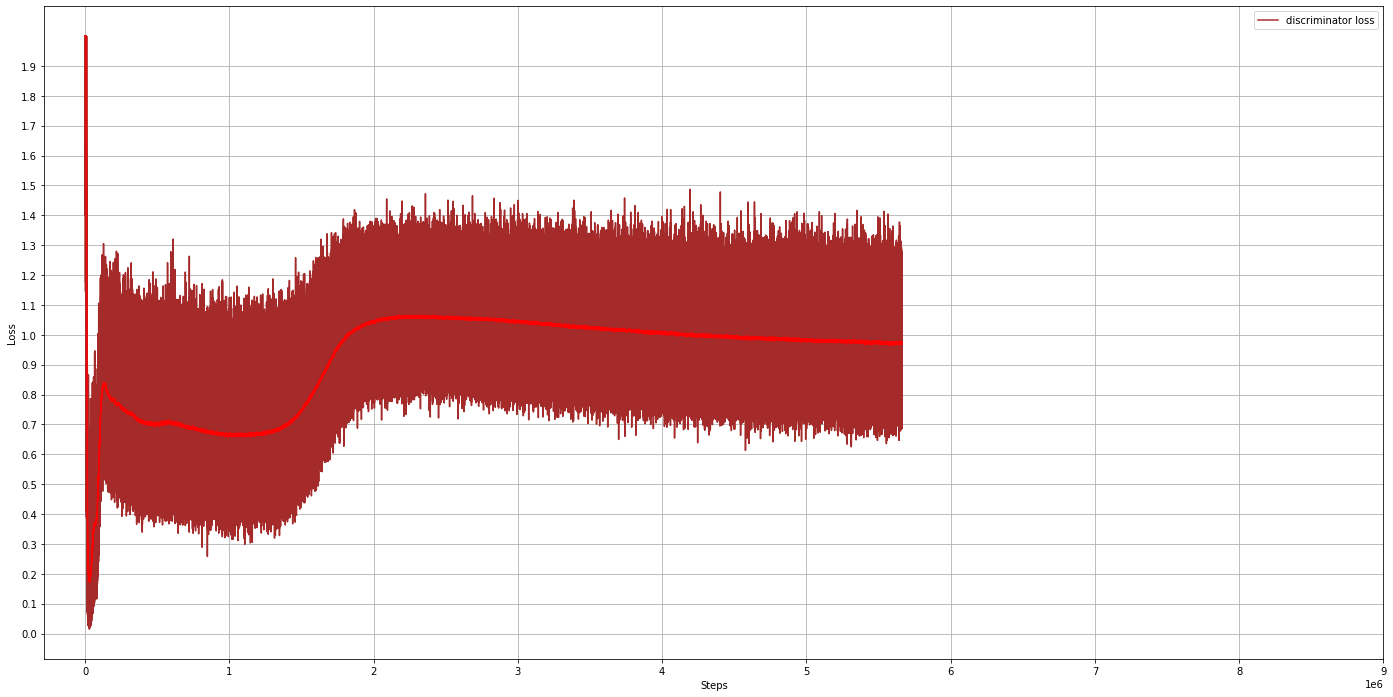

Discriminator loss

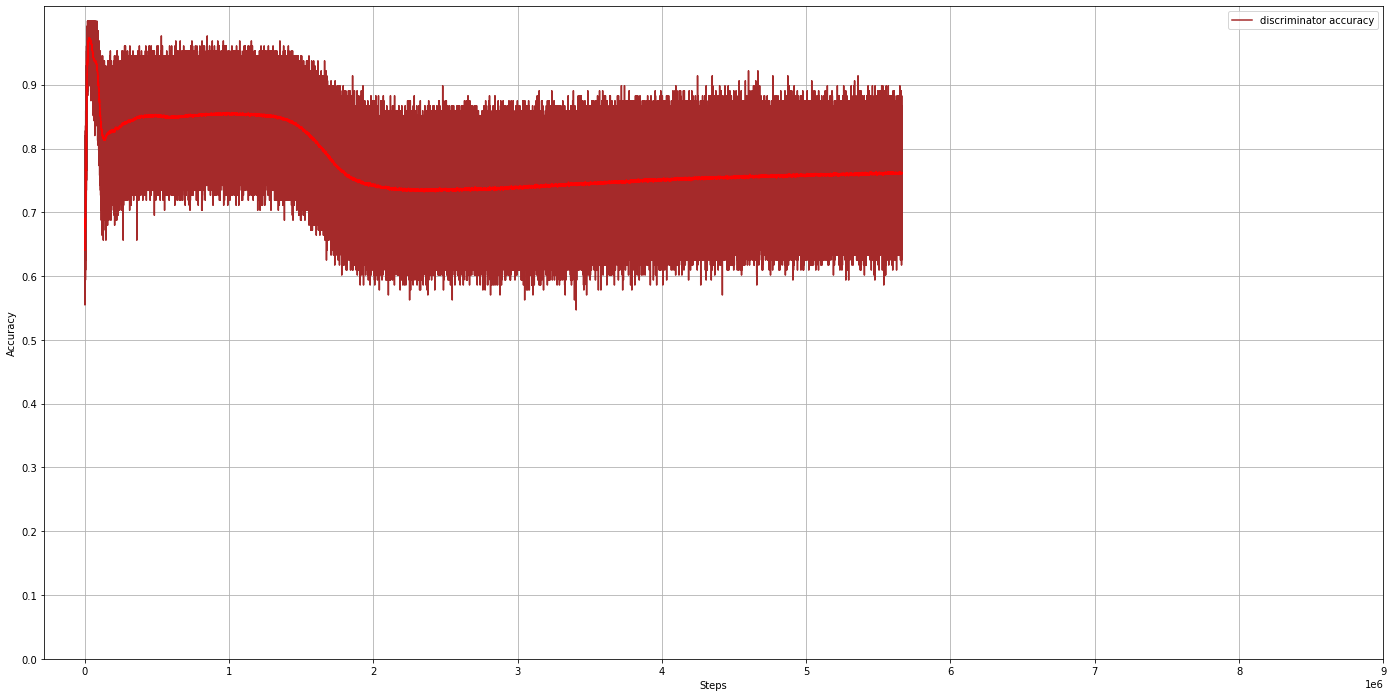

Discriminator accuracy

Evaluate:

python training.py –action=EVALUATE –output_dir=checkpoints-27 –lookback_history=168 –estimate_length=24 –train_epochs=1500 –learning_rate=1e-4 –minimal_rate=1e-5 –decay_steps=50000 –warmup_steps=50000 –clip_gradients=-1.0 –hidden_size=128 –feedforward_size=128 –embedding_size=20 –discriminator_lambda=0.1 –num_attention_heads=4 –num_hidden_layers=2 –dropout_prob=0.3 –num_series=370 –training_set_size=321598 –train_file=data/train.tfrecords –test_file=data/test.tfrecords –predict_file=data/test.tfrecords –train_scaler_file=data/train_scaler.joblib –test_scaler_file=data/test_scaler.joblib –predict_scaler_file=data/test_scaler.joblib –batch_size=64; cat output.csv

Predict:

python training.py –action=PREDICT –output_dir=checkpoints-27 –lookback_history=168 –estimate_length=24 –train_epochs=1500 –learning_rate=1e-4 –minimal_rate=1e-5 –decay_steps=50000 –warmup_steps=50000 –clip_gradients=-1.0 –hidden_size=128 –feedforward_size=128 –embedding_size=20 –discriminator_lambda=0.1 –num_attention_heads=4 –num_hidden_layers=2 –dropout_prob=0.3 –num_series=370 –training_set_size=321598 –train_file=data/train.tfrecords –test_file=data/test.tfrecords –predict_file=data/test.tfrecords –train_scaler_file=data/train_scaler.joblib –test_scaler_file=data/test_scaler.joblib –predict_scaler_file=data/test_scaler.joblib –batch_size=64; less output.csv

Peformance:

Adversarial with parameters as provided in samples:

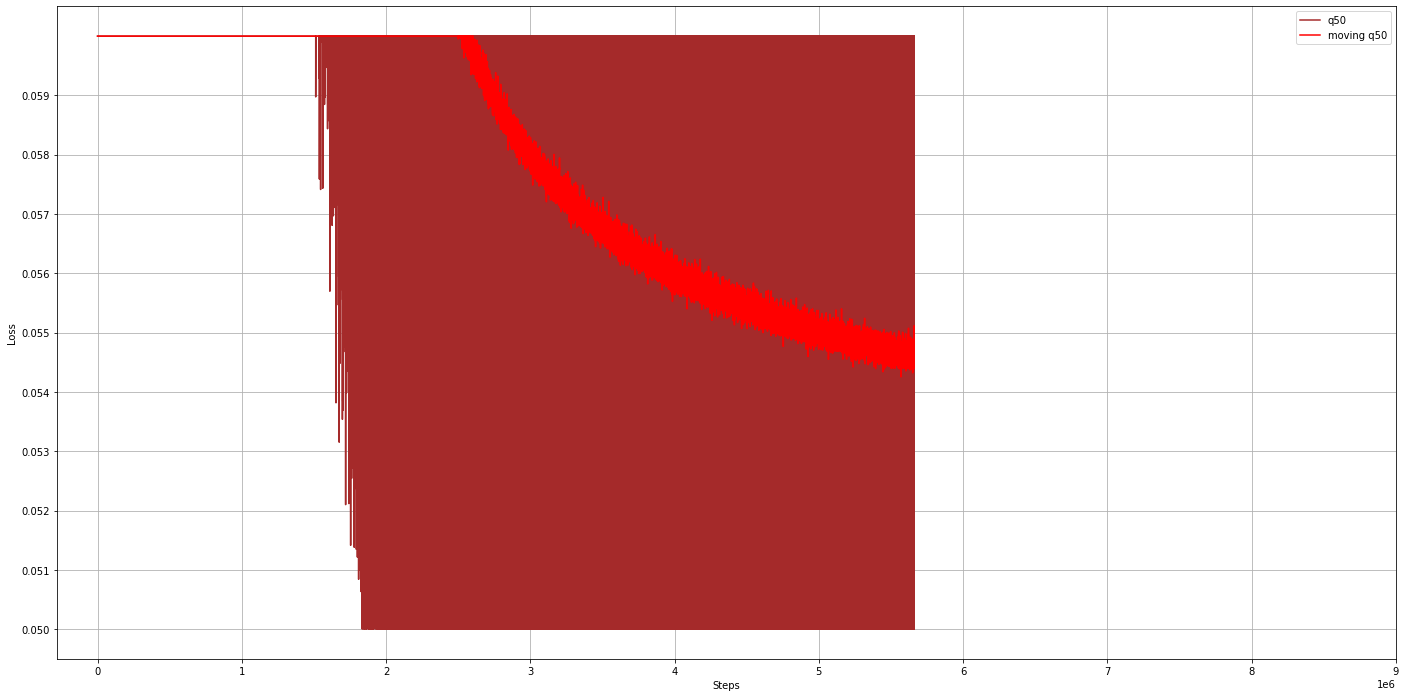

q50 during trainig:

Final Testing set:

mae: 0.097607 mbe: -0.022780 mape: 16.283786 smape: 4.758574 mse: 0.052448 rmse: 0.229016 q50: 0.099462
